Applications
TWA-21 Indoor Wall Mounted Antenna
TETRA Communication
380-480 Frequency band
Indoor signal coverage
Features
Broadband and Low VSWR
Small size, low profile, hign performance
Light weight ABS radome
Specifitions
| Frequency Range | 380-480 MHz |
| Bandwith | E:45 H:100 |
| Gain | 3±1 dBi |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Max Power | 50 W |
| Connector | N Female or customized |
| Dimension | 210x180x44 mm |
| Weight | 400 g |
Easy for installation and high performance
Ciricom RF Repeaters system is designed to solve problems of weak mobile signal, which is more cost-effectiv...

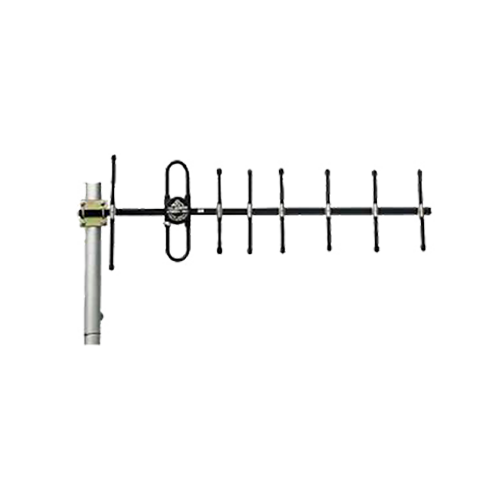

Ciritek directional yagi antennas have high gain and good front to back performance to minimize external int...
